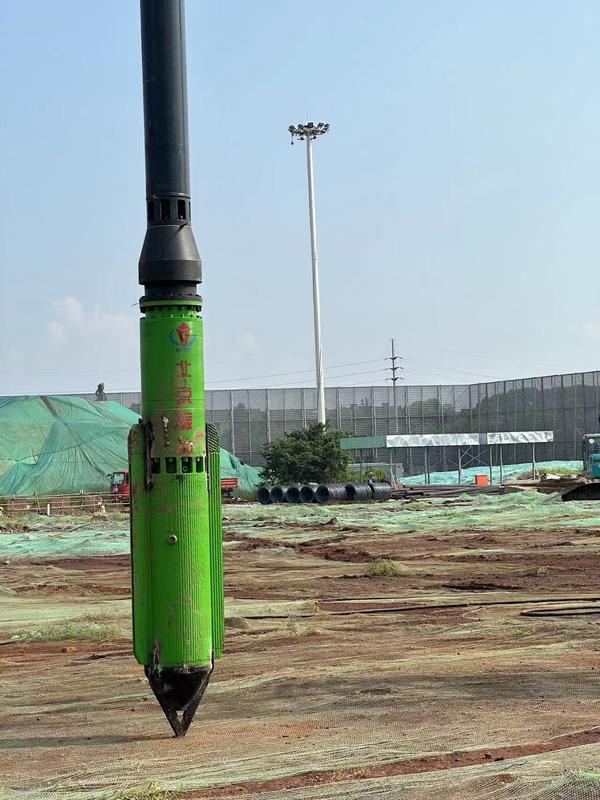

Name: Top Feed Vibroflot with 180 KW and 260 KW Motor Power and 2320kg Weight for Vibro Compaction
Brand: Beijing Vibroflotation Engineering Machinery Limited Company
SKU: BJVE 426-180、BJVE 450-260
Price: 26,000.00 USD
Availability: InStock

Hogar > productos > Alimentación superior Vibroflot >

Top Feed Vibroflot with 180 KW and 260 KW Motor Power and 2320kg Weight for Vibro Compaction

180 KW Motor Power Top Feed Vibroflot

260 KW Motor Power Vibroflotation Equipment

2320kg Weight Vibro Compaction Machine

Lugar de origen:

Porcelana

Nombre de la marca:

BVEM

Certificación:

CE、ISO 9001:2000、ISO 9001:2008

Número de modelo:

BJVE 426-180、BJVE 450-260

Documento:

BVEM-Top Feed Vibroflot.pdf

Éntrenos en contacto con

Pida una cita

Detalles del producto

Condición::

NUEVO

Potencia del motor::

180 kilovatios, 260 kilovatios

Peso::

2320 kilogramos, 3280 kilogramos

Dimensión (largo x ancho x alto)::

3020*676*440 mm, 3310*700*450 mm

Solicitud::

Compactación vibro, reemplazo vibro

Motor::

300 kilovatios/400 kilovatios

Tipo del poder::

Eléctrico

Max. amplitud::

22mm, 26mm

Max. Velocidad::

1450 r/min

fuerza centrífuga::

280 kN, 440 kN

Garantía::

1 año o 2000 horas (lo que ocurra primero)

Pago y términos de envío

Cantidad de orden mínima

1 juego

Detalles de empaquetado

caja de madera

Tiempo de entrega

20-35 días

Condiciones de pago

LC, T/T

Capacidad de la fuente

600 juegos/años

PRODUCTOS RELACIONADOS

Éntrenos en contacto con

86--13581545619

tianss@bjvibro.com

86-010-69592173

Contacto ahora

Descripción de producto

Top Feed Vibroflot with High Centrifugal Force Adjustable Speed and Large Amplitude for Vibro Compaction

Comparative Analysis of Vibroflotation Equipment Series

In the field of vibroflotation equipment, different technical types and models exhibit significant differences in performance parameters and application scenarios. This analysis compares four vibroflotation equipment models to provide professional references for equipment selection decisions.

Main Parameter Comparison

Vibro Model	BJVE-426-180 (Electric Normal)	BJVE-450-260 (Electric Normal)	BJVH-350-150 (Hydraulic)	BJVEF-450-225 (Electric Frequency Conversion)
Diameter (mm)	426	450	350	450
Power (kW)	180	260	150	225
Speed (rpm)	1450	1450	2600-2900	1450-1740
Centrifugal Force (kN)	280	440	250-350	520
Max. Amplitude (mm)	22	26	11	20

Comparison of Core Parameters: From Specifications to Power Performance

Differences in Basic Specifications

Diameter: Ranges from 350mm (BJVH-350-150) to 450mm (BJVE-450-260 and BJVEF-450-225), with the BJVE-426-180 measuring 426mm. Larger-diameter equipment offers wider vibration influence range while smaller-diameter models provide stronger penetration and greater flexibility.

Power: Ranges from 150kW (BJVH-350-150) to 260kW (BJVE-450-260). Power determines the equipment's vibration output capacity and continuous operating intensity.

Power and Vibration Performance

Speed: Conventional electric models operate at fixed 1450rpm, while the electric variable-frequency model features adjustable speed (1450-1740rpm). The hydraulic model has a wide speed range (2600-2900rpm) for complex hard soil layers.

Centrifugal Force: The BJVEF-450-225 leads with 520kN, followed by BJVE-450-260 (440kN), BJVH-350-150 (250-350kN range), and BJVE-426-180 (280kN). High centrifugal force enables efficient handling of high-resistance vibration operations.

Maximum Amplitude: The BJVE-450-260 has the largest amplitude at 26mm. Equipment with large amplitude provides greater influence on soil compaction around the vibration area.
